Intumescent
Fireproofing
Intumescent fireproofing is a thin coating that gives exposed structural steel a fire-resistance rating while keeping a clean, painted finish. FAIME applies it to beams, columns and steel decks in warehouses, industrial buildings and commercial conversions. Each coat is built up to the specified thickness, measured, recorded and handed over with the documentation.
Looks Like Paint.
Works Like Insulation.
In normal conditions an intumescent coating is a smooth, paint-like film. In the heat of a fire it swells into a thick, insulating char that slows the rate at which the steel heats up, helping the structure keep its load-bearing capacity for the rated period.
What FAIME Does
- Thin-film intumescent coatings on exposed interior structural steel
- Beams, columns, connections and steel deck undersides
- Application by air spray and hand roller in measured coats
- Dry film thickness inspections, recorded and handed over
- Work phased around buildings that stay in operation
What Sets the Rating
- The required rating for each member comes from the project's fire-protection specification
- The specified product and its listed thickness for that steel section determine the build
- FAIME applies to that specification and records the readings; it does not design the rating
- We apply thin-film intumescent coatings, not cementitious spray fireproofing
The Thickness
Is the Rating.
Site Assessment
We walk the building against the drawings and specification to confirm every member to be protected and its required rating, and coordinate access with the client and other trades.
Surface Preparation
Steel is cleaned and prepared so the coating bonds properly. Everything that is not being coated is masked and protected from overspray.
Built Up in Coats
The coating is applied by air spray and hand roller in multiple coats, each left to cure — typically around eight hours — before the next goes on. One heavy pass is never the shortcut.
Measured as We Go
Dry film thickness is checked regularly on flanges, webs and connections so that every section reaches the thickness its rating requires, not just the easy-to-reach faces.
Recorded for Your File
Every reading is recorded. At handover you receive the inspection reports and the material certifications for the products applied.
Safe Around Operations
Work areas are fenced and controlled, crews work to site safety protocols with the right PPE, and applications are scheduled around the building's operations.
Fireproofing Work
We Have Actually Done

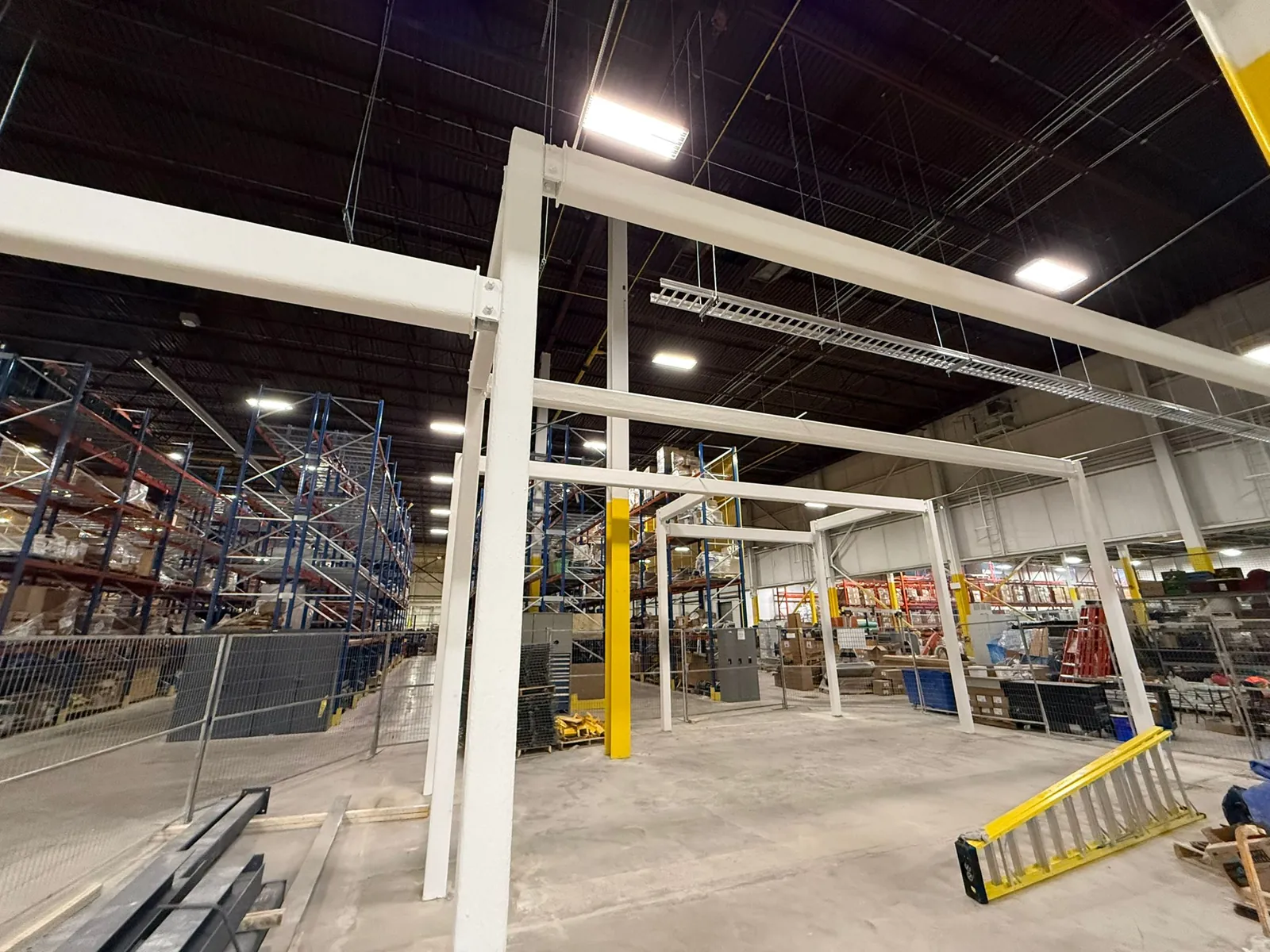

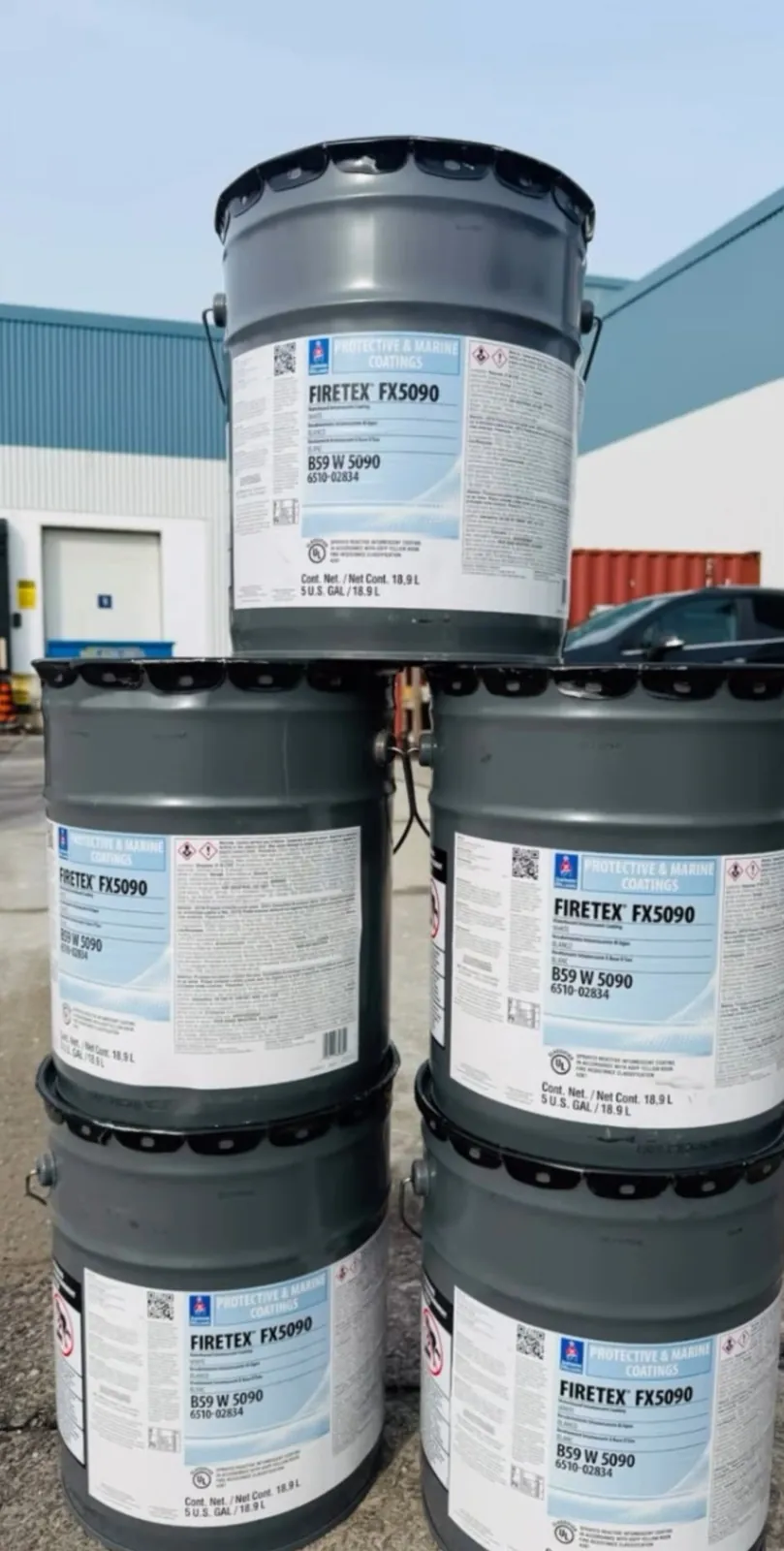

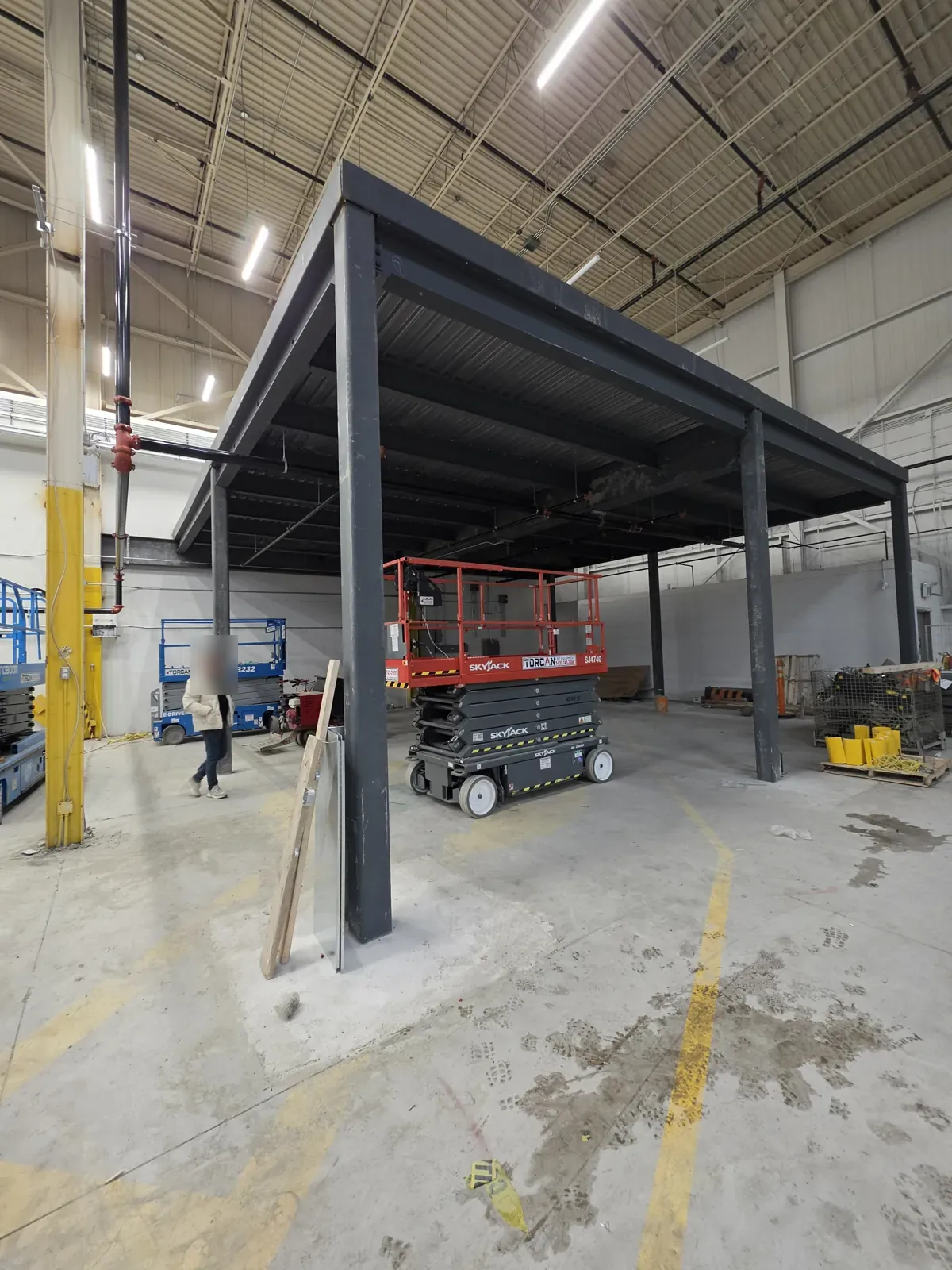

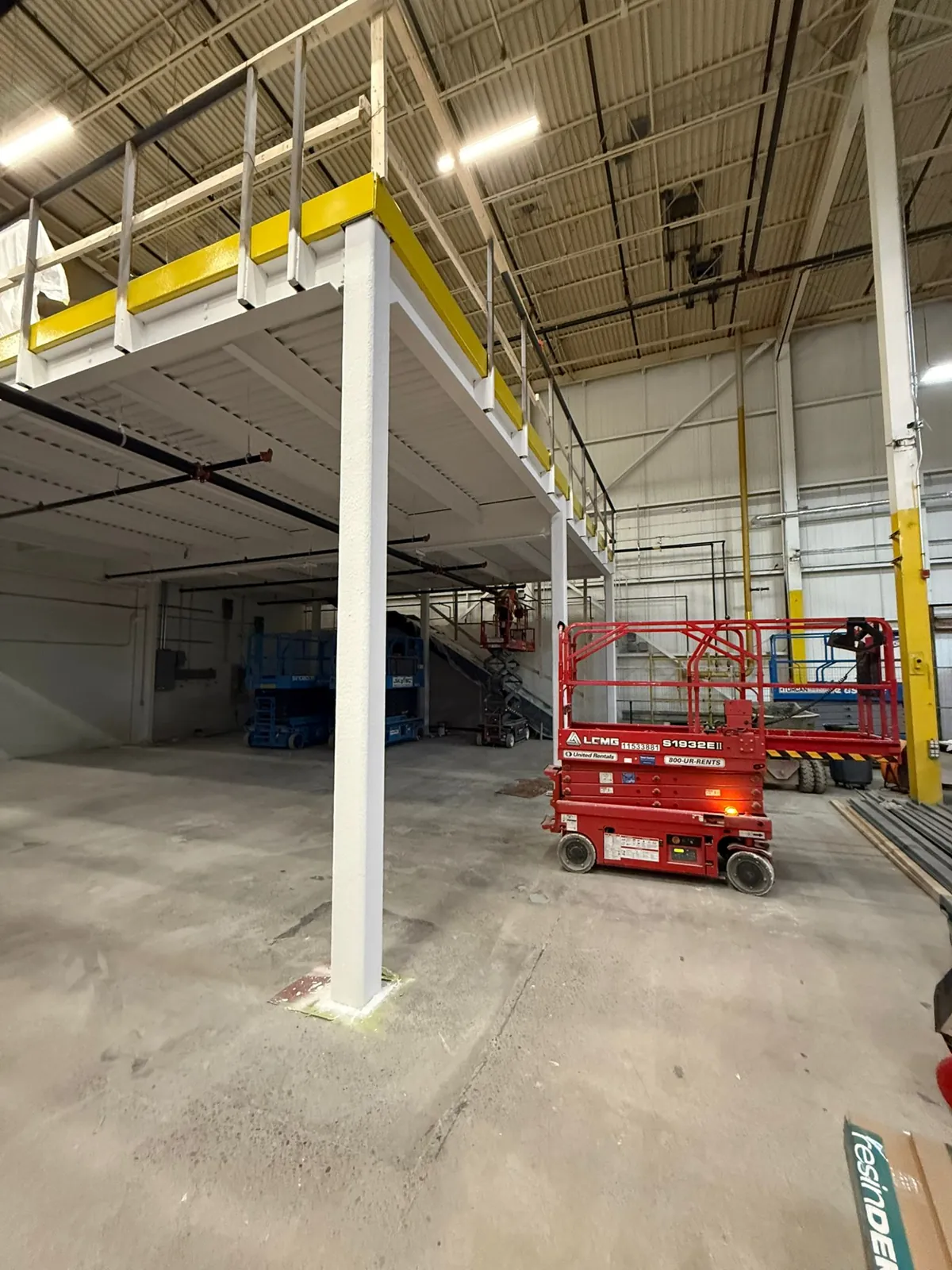

A York Region warehouse in Newmarket, being upgraded so that office space can be added. FAIME applied Sherwin-Williams Firetex® FX5120 for a 1-hour rating and Firetex® FX5090 for a 2-hour rating to selected beams, columns and a 1,300 sq ft steel deck, in multiple coats roughly eight hours apart, with thickness verified and recorded throughout. March to April 2026, completed on schedule with zero safety incidents while the warehouse stayed in operation.




Where Intumescent
Makes Sense
Warehouse & Industrial Upgrades
Mezzanines, new office areas and change-of-use work inside existing industrial buildings, where exposed steel needs a rating and the building cannot stop operating.
Commercial Conversions
Offices, showrooms and retail spaces with exposed structure, where a clean, painted finish matters as much as the rating itself.
General Contractors
A fireproofing scope priced from your drawings and specification, applied to the specified products and thicknesses, and closed out with the paperwork you need.
Intumescent Fireproofing
Across the GTA
Frequently Asked
Questions
Steel That Needs a Rating?
Send us the drawings, the required fire-resistance ratings and the specified product. We will review the scope and come back with a written price and a schedule that works around your building.
